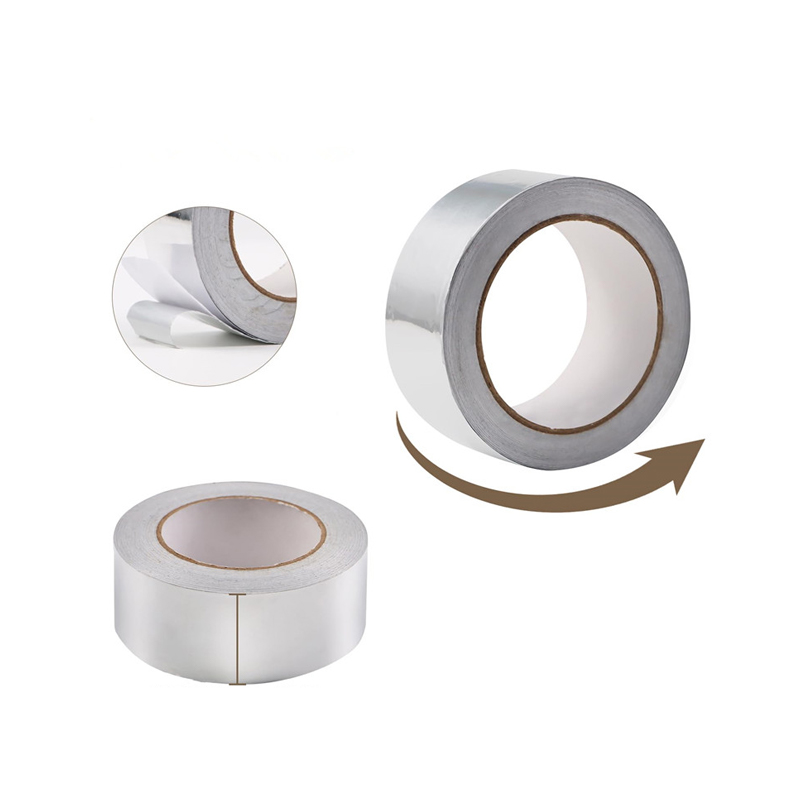

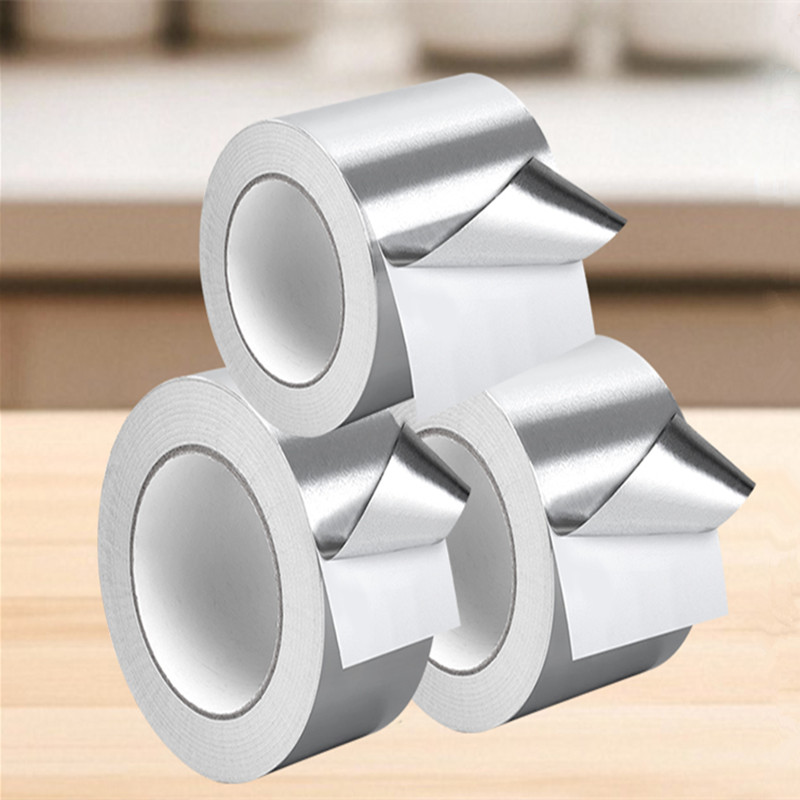

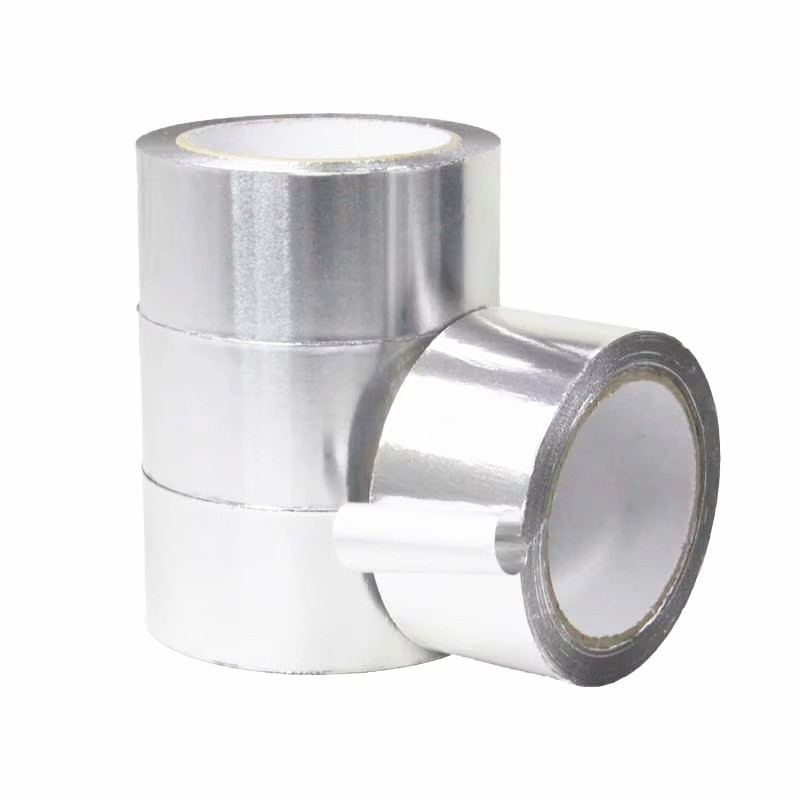

Aluminum Foil Tape
Aluminum foil tape is a functional adhesive tape featuring a high-purity aluminum foil substrate, coated on one side with a pressure-sensitive adhesive (such as acrylic, rubber, or butyl). Some variants include a release liner or a composite reinforcement layer (such as fiberglass or PE film). It possesses a combination of properties, including thermal conductivity, light shielding, moisture resistance, electromagnetic shielding, and temperature resistance.
It is used for thermal/cold reflection applications, applied either along or over insulation layers.
• Suitable for use on piping and engine support structures.
• Used to wrap vinyl-coated wiring to protect it from exposure to heat, water, dust, and various chemicals.
• Applicable in any situation where aluminum tape is required.
Common Types and Key Parameters
- Standard Aluminum Foil Tape (No Liner)
General-purpose insulation and sealing.
- Foil Thickness: 0.05–0.08 mm
- Temperature Resistance: 80–120°C
- Aluminum Foil Tape with Release Liner
Designed for die-cutting and clean-room use, providing precise application for electronic shielding.
- Conductive Aluminum Foil Tape
Features a conductive adhesive for EMI/RFI shielding, widely used in electronics and communication equipment.
- Reinforced Aluminum Foil Tape (Foil + Fiberglass/Fabric)
High tensile strength and thermal resistance, ideal for air ducts and high-temperature piping.
- Common Dimensions and Customization
- Standard Widths: 50 / 75 / 100 mm
- Standard Lengths: 50 / 100 m
- Custom widths, lengths, and adhesive systems available upon request.
Core Performance
- High water vapor barrier and thermal reflectivity
- Good weather and aging resistance
- Effective EMI/RFI shielding (conductive variants)
- Temperature resistance: up to 120°C (standard) or 180°C+ (high-temperature)
- Strong initial tack and holding power on irregular and curved surfaces
