Double-Sided Tape
Double-sided tape is an adhesive tape supplied in roll form, featuring a substrate uniformly coated on both sides with pressure-sensitive adhesive and covered by a release liner (paper or film). Its basic structure consists of: a release protective layer + adhesive layer + substrate (or a substrate-free pure adhesive layer) + adhesive layer + release protective layer. During application, the release liner is peeled away to enable bonding on both sides, serving as an effective alternative to screws, rivets, and liquid adhesives, while ensuring efficient and clean installation.
Main Types and Core Parameters

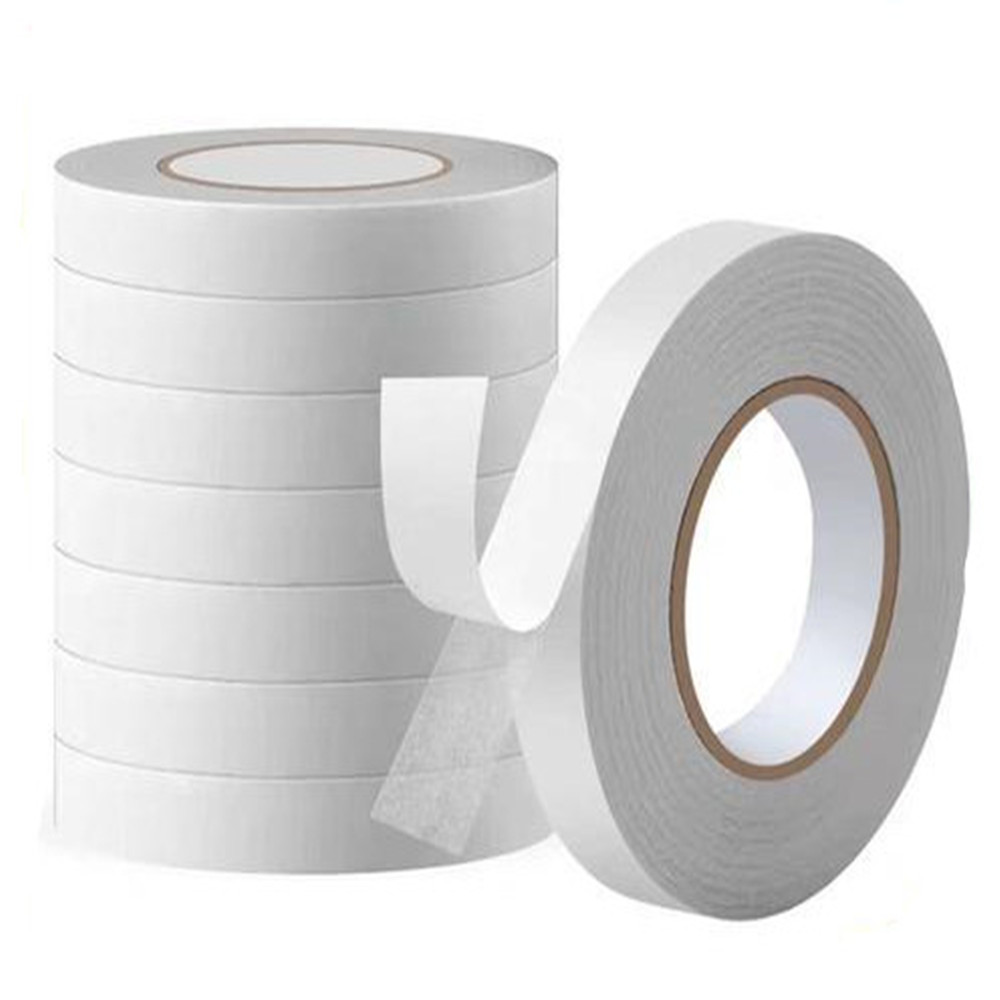

- Cotton Paper Double-sided Tape (General Purpose): Offers cost-effectiveness with long-term temperature resistance of 70°C. Suitable for carton sealing, labeling, and office applications. Solvent-based adhesives provide firmer holding power than water-based adhesives.

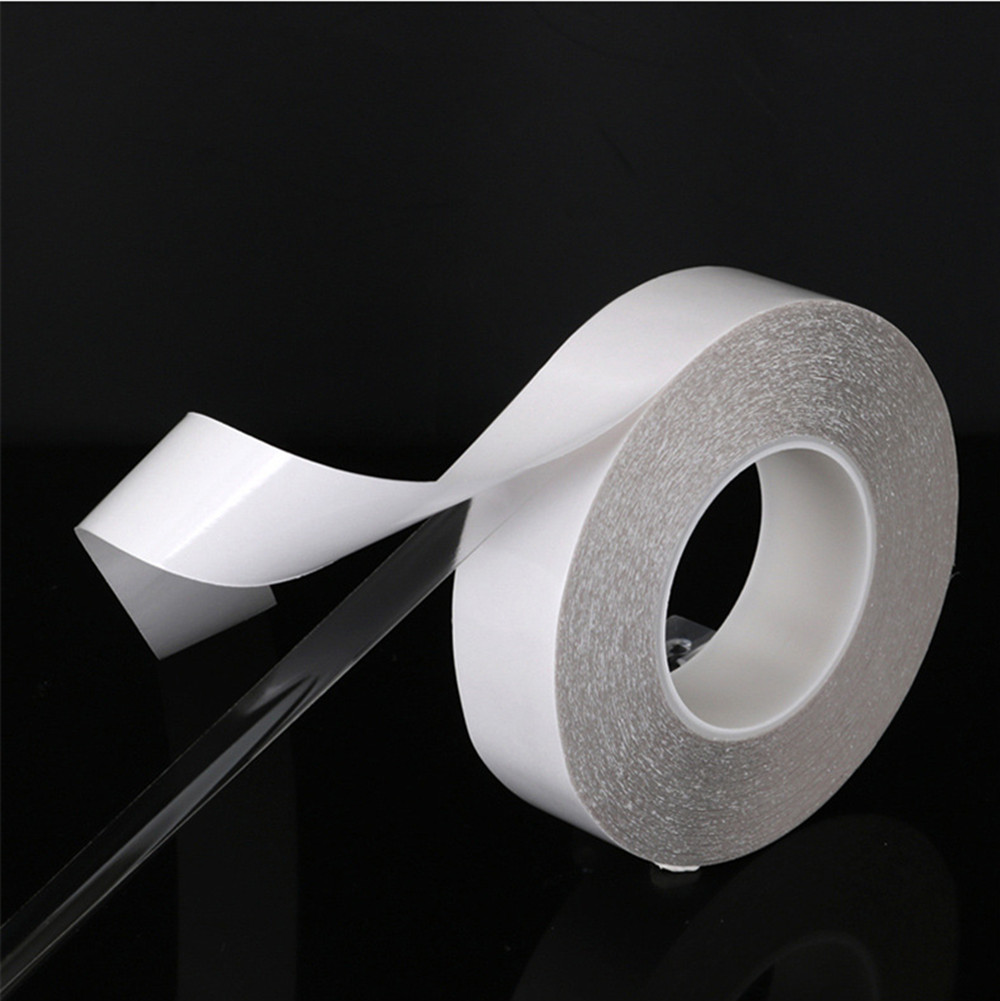

- PET Film Double-sided Tape: Available in transparent or matte finishes. Features high shear strength and a temperature resistance range of 100–125°C. Used for electronic nameplates, LCD assemblies, mobile phone components, and die-cutting applications.
- Non-woven/Fiber Double-sided Tape: Highly flexible, allowing for effective bonding to slightly curved surfaces. Temperature resistant up to 80°C. Suitable for automotive interiors and home appliance assembly.
- Substrate-free Double-sided Tape (Pure Adhesive Film): Ultra-thin profile (0.02–0.1mm) with a temperature resistance range of 120–145°C. Suitable for precision electronics, narrow-bezel bonding, and waterproof sealing applications.
- Foam Double-sided Tape (PE/EVA/Acrylic): Provides cushioning, shock absorption, and gap-filling capabilities. Acrylic foam variants offer enhanced weather resistance, making them suitable for outdoor signage, automotive bodywork, and architectural curtain walls.
- Conductive/Thermally Conductive Double-sided Tape: Functional specialty tapes. Conductive versions are used for EMI shielding, while thermally conductive versions are used in heat dissipation modules.
Common Widths: 12 / 24 / 36 / 50 / 100 mm
Lengths: 50 / 100 m
Customization: Sizes, adhesive systems, and tack levels can be customized upon request.
Key Performance Indicators
- Initial tack (instantaneous bonding strength), holding power (ability to sustain load over time without detachment), and peel strength.
- Temperature resistance range, weather resistance, aging resistance, and solvent resistance.
- Substrate tensile strength and die-cutting precision.
- Environmental compliance (VOC, RoHS).
Applications
- Electronics Industry: Component mounting for mobile phones, computers, and monitors; screen bezels; backlight modules; EMI shielding.
- Automotive: Interior trim, emblems, rearview mirrors, and wire harness fastening; exterior graphics and body trim.
- Packaging & Printing: Carton sealing, gift boxes, label lamination, and die-cutting processes.
- Construction & Advertising: Glass curtain walls, outdoor signage, decorative panels, and acoustic material fastening.
- Office & Daily Use: Crafts, wall decoration, temporary mounting, posters, photos, notices, and envelopes.
